Dynamic environment monitoring system


l  Features:
Ø  Real-time data management: management levels monitoring tree; According to the bureau standing, equipments to show each device control state；
Ø  Real-time warning management: alarm real-time browsing and refresh; According to alarm level, Equipment types, statistics, statistical conditions can be defined, level 4 alarm management, sound, light and color alarm to prompt;
Ø  Historical alarms management: alarm classified statistics;  number showed and link to alarm list; Direct export EXCEL;
Ø  Curve management: real-time ,historical curve inquire and  derived;  curve display mode and record cycle; Curve and data are showed the same interface;
Ø  Curve management: real-time ,historical curve inquire and  derived;  curve display mode and record cycle; Curve and data are showed the same interface;
Ø  The system configuration: with the graphic to configure, intuitive present the monitoring data equipment,  to show graphs, curve dynamic display, the power distribution diagram and electronic map;
Ø  Statement statistics: all kinds of statistics derived and inquires, statement;
Ø  Voice and messages disabled: according to the warning level, equipment classification, monitory point to different users; mobile phone maintain notice, support the bidirectional inquiring and control; receive and dispatch messages, record statistical and create reports;
Ø  User permissions: based on the role of rights management; The group mode area and professional authority fragmentation to distribute, the user repeat to login restricted and to remind user password expired;
Ø  Control  password confirmed: user's information bind messages voice and access control and so on;
Ø  Entrance guard management: card number management, personnel management, authorization and removed from power, authorized, configurate and export excel, credit information display, count and create reports;
Ø  Energy consumption management: according to equipment to count and analyze energy consumption , and statistical analysis  total power station of  each office, the equipment's power consumption , air conditioning power consumption and so on, by day, month and year output statements;
Ø  WEB services: support WEB browsing of cross-platform;
Ø  The large capacity access: iMesaPlat distributed data acquisition, oriented interface module of the service and  constitute application software group; Regional monitoring center support 5000 bureau standing, centralized monitoring center support 50000 stations access..

l  Parameters

Ø  Type	Ø  iMesaPlat
Ø  Operating system	Ø  Windows XP/Windows 2003/Windows2008 /Vista  /Win7
Ø  Number according to the library	Ø  SQL
Ø  Written language	Ø  .net   C sharp
Ø  Software architecture	Ø  B/S

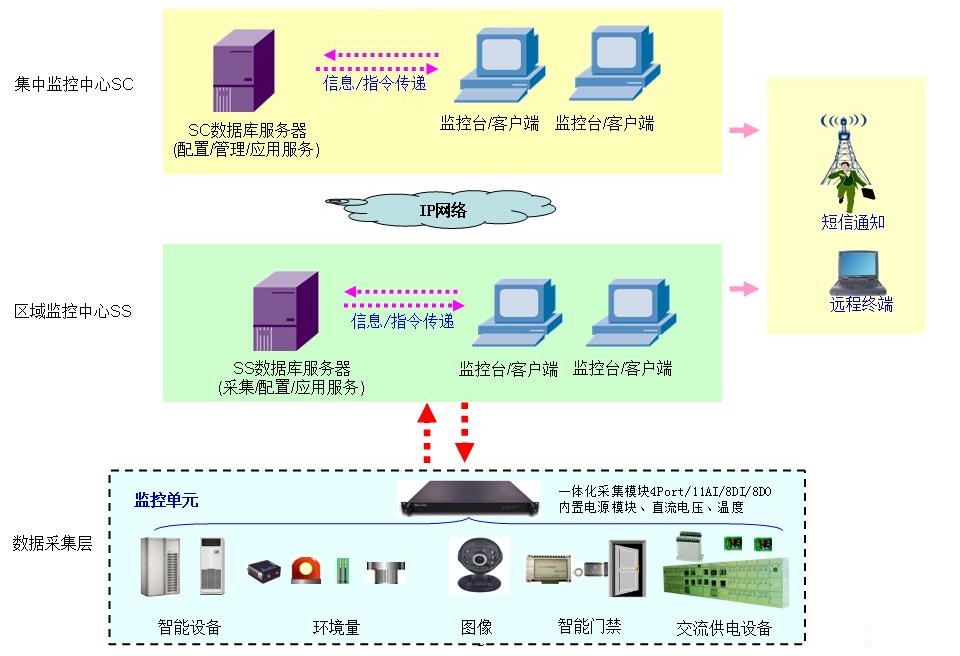

l  System Diagram


l  Main Hardware Products

Ø  Product Type:  SQL Server T250
Ø  Case size:  482 * 44.5 * 250mm
Ø  Material: SGCC1.2
Ø  The main board size: 17 mm * 17 mm (Mini-ITX)
Ø  Power supply: 1 U professional server power supply
Ø  A cooling fan: three 4028 fans
Ø  Switch: 1 * Power switch + 1 * Reset switch
Ø  TCP/IP SLIP communication agreement
Ø  Can link hundreds of group communication thread
Ø  IMesaPlat software platform
Ø  The information I/O processing capacity of 10000 point
Ø  Accord with industrial standards
