RV900LC-A03IC etc
- ModelRV900LC-A03EM /RV900LC-A03IC
- Type
- Other
Main material and finish: Pocked black powder coated ZDC housing and handle, ZDC profile cylinder, white zinc-plated steel cam and rod;
l Features:
Ø Main material and finish: Pocked black powder coated ZDC housing and handle, ZDC profile cylinder, white zinc-plated steel cam and rod;
Ø With internal door access controller and EM card reader, integrated electric lock, RF card reader, access controller, door switch, all in one device.
Ø RF frequency: 125KHz (EM card reader);
Ø Support network and standalone working, open door by remote control,RFID card (EM card or Mifare card), key etc.
Ø With intelligent design, in case unduly unlocked or after unlock no one enter into the door, the lock will lock within 5 seconds automatically;
Ø The working voltage range is from DC12V to DC18V, max working current is 60mA.
Ø User register: max issue 256 users and keep 2528 newly records (Can be expanding).
Ø With RS422/RS485 communication output for online work, relevant software with strong access control function;
Ø Support open door method: by reading card, remote control, mechanical key.
Ø Adaptation is strong, which can be used for different manufacturers and different specifications of cabinets, which can be directly replace existing mechanical lock;
Ø Application places: all kinds of cabinet,store ark, outdoor ark, store ark,suitable for network door access control system.
l Parameters
l Application
Ø Main material and finish: Pocked black powder coated ZDC housing and handle, ZDC profile cylinder, white zinc-plated steel cam and rod;
Ø With internal door access controller and EM card reader, integrated electric lock, RF card reader, access controller, door switch, all in one device.
Ø RF frequency: 125KHz (EM card reader);
Ø Support network and standalone working, open door by remote control,RFID card (EM card or Mifare card), key etc.
Ø With intelligent design, in case unduly unlocked or after unlock no one enter into the door, the lock will lock within 5 seconds automatically;
Ø The working voltage range is from DC12V to DC18V, max working current is 60mA.
Ø User register: max issue 256 users and keep 2528 newly records (Can be expanding).
Ø With RS422/RS485 communication output for online work, relevant software with strong access control function;
Ø Support open door method: by reading card, remote control, mechanical key.
Ø Adaptation is strong, which can be used for different manufacturers and different specifications of cabinets, which can be directly replace existing mechanical lock;
Ø Application places: all kinds of cabinet,store ark, outdoor ark, store ark,suitable for network door access control system.
l Parameters
| Type | RV900LC-A03EM | RV900LC-A03IC | ||
| RFID Card | EM | Mifare 1/cpu | ||
| Effective Distance | 40-80mm | 10-40mm | ||
| RF Frequency | 125KHz | 13.56MHz | ||
| Communication Output | RS485 | |||
| Transmission Distance | 1200m | |||
| Number of users | >1700 card holders; | |||
| Stored Record Number | > 6500 latest storage records; | |||
| Main Material | Pocked black powder coated ZDC housing and handle, ZDC profile cylinder, white zinc-plated steel cam and rod; | |||
| Color | Black | |||
| Surface Treatment | Polish/ Passivation / Powder spraying | |||
| Surge Parameters | The power cord common mode 1 kV, differential mode 2 kV, signal lines common mode 1 kV | |||
| Lightning Protection Level | power supply prevents thunder: dc power mouth meet surge test level of the differential mode 1 kV, common mode 2 kV (criterion B) | |||
| Waterproof Level | IP55 | |||
| Operating Temp | -20℃~60℃ | |||
| Suitable Humidity | 5%~90%(non-condensing) | |||
| Working Voltage | DC12V±10% | |||
| Consumption Power | 6W MAX | |||

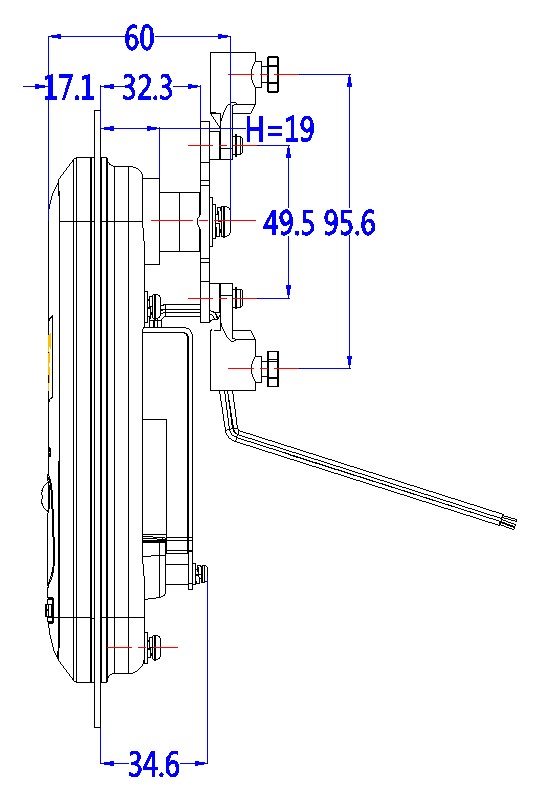

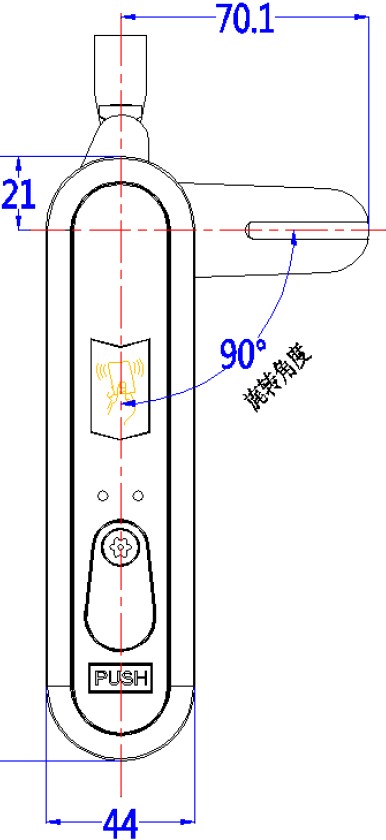

| Size (mm) | 180(W) x47(D) x72.4(H) | |||
| weight | 0.68kg | |||
l Application
